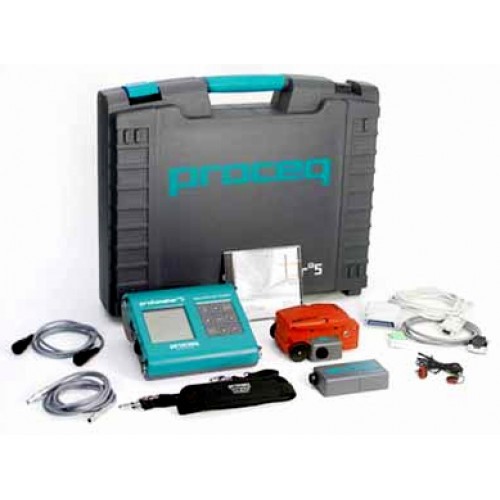

REBAR DETECTION SYSTEM CO-560s REBAR DETECTION SYSTEM CO-560s Original : Schmidt - Switzerland 390 00 054 Standard Testing : BS 1881 : Part204; DIN 1045, SIA 162, DGZfP B2. The compact, lightweight PROFOMETER 5+ Rebar Detection System bring the power of non-destructive pulse-induction technology to detection of rebars. Using the pulse induction measuring method enhances accuracy by making the instrument virtually insentive to external interferences. Features : - Location and orientation of reinforcing bars - Measuring concrete cover depth - Determination of bar diameter - Compact, user-friendly indicating device with backlight - ProVista PC software for fast data transfer and editing - Can be operated in metric and imperial units Specification : - Measuring Range - Small range : up to 100mm ( 3.94 " ) deep depending on bar size - Large range : up to 188mm ( 7.41 " ) deep depending on bar size - Example: 16mm ( # 5) bar; 80mm ( 3.15) deep in small measuring range or 147mm ( 5.71 " ) deep in large measuring range. - Measuring Accuracy Better than ± 2mm ( 0.08 " ) or ± 5% for concrete cover - Bar Sizing : 8 - 40mm ( # 3-12) diameter bars at better than ± 1 bar size - Display : 128 x 128 pixel graphic LCD with backlight - Memory : Model Scanlog : Extended memory CyberScan and 120.000 values in Measure with grid graphical data files ( Non-volatile) - Data Output : RS232 interface, USB via adapter - Case dimension : 415 x 500 x 125 mm ( 16.3 " x 19.7 " x 4.9 " ) - Weight : 4.5 kg ( 9.9 lbs)...detail |
