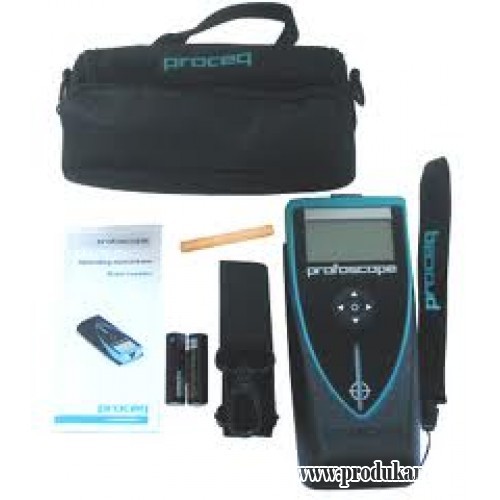

REBAR DETECTIONSYSTEM CO-570S PROFOSCOPE REBAR DETECTIONSYSTEM CO-570S PROFOSCOPE The Profoscope is a versatile, fully-integrated rebar detector and covermeter. It is a compact, light device allowing the user to operate it with one-hand. Profoscope has a unique real-time rebar visualization allowing the user to actually “ SEE” the location of the rebar beneath the concrete surface to a maximum depth of 180 mm. This is coupled with rebar-proximity indicators and optical and acoustical locating aids. These unique features combine to make the task of locating rebars a simple and efficient process. Rebar diameter can also be estimated within the specified testing range. Profoscope is very simple to use; the intuitive user interface means faster rebar identification. Application : - Rebar detection – ( e.g. general contractors, civil contractors, drilling specialists, electrical contractors) - Measurement of concrete cover - ( e.g. general contractors, civil contractors, civil engineers) - Measurement of rebar diameter – ( e.g. educational institutes, building inspectors, civil contractors) - Checking for minimum cover – ( e.g. building inspectors, civil contractors) - Map out the rebar grid and cover for corrosion studies ( with Canin+ ) – ( e.g. building inspectors) - Rebar grid examination for planned load changes on the structure – ( e.g. civil engineers, civil contractors) Testing Standardization : BS 1881 part 204; DIN 1045; SN 505 262; DGZfP B2 Technical Data : - Measuring Range See graph on previous page for maximum range relative to bar diameter - Measuring Size The concrete surface to a maximum depth of 180 mm and measuring bar size of 55 mm diameter. - Power Supply Power source : 2 x 1.5 VAA ( LR6) Batteries Voltage range : 3.6 V to 1.8 V - Current Consumption Power on, backlight off : - 50 mA Power on, backlight on : - 200 mA Sleep mode : -10 mA Power off : 50 h Backlight on : > 15 h - Time Outs Sleep mode : 30 s Auto shut down : 120 s - Environmental Conditions : Temperature range : -10° to 60° C ( 14° to 140° F) Humidity range : 0 to 100% rH Protection class : IP54 Standard supply including : Canvas Bag, Battery type AA, Carrying Strap, holding plate 280 mm dia...detail |
